Product Details
＋
DESCRIPTION
Waldmann Part Number: 113163000-00660684

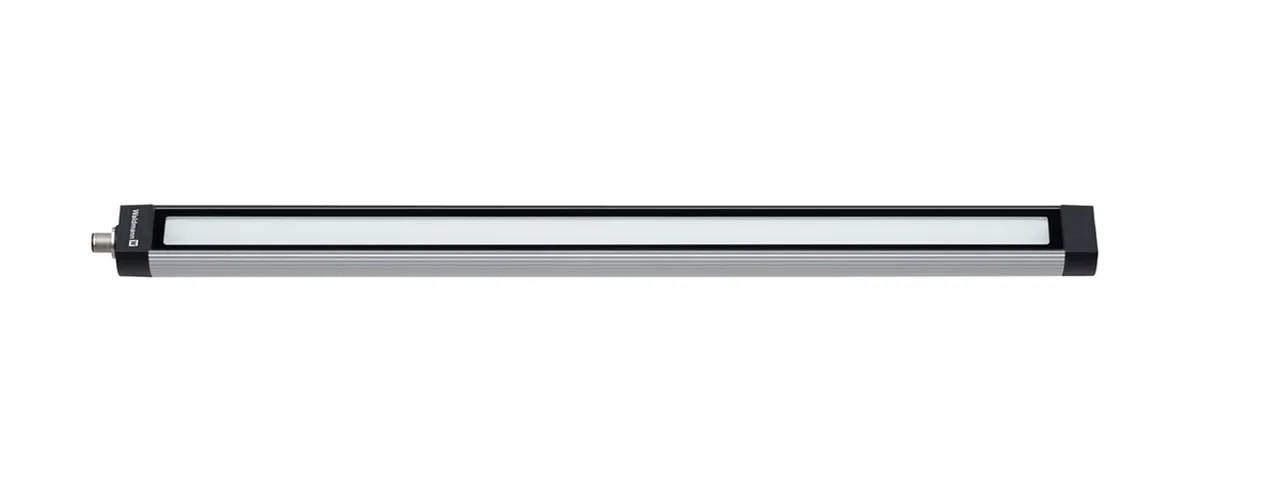

Waldmann's MACH LED PLUS.forty machine light offers bright 5000K glare-free light in a very compact form factor. MACH LED PLUS.forty is considered one of the most sustainable machine lights on the market today and with good reason - Its cutting-edge design, top quality materials, and highly efficient LED technology offer 60,000 hours of maintenance-free operation. And an M12 connector ensures fast and easy installation. MACH LED PLUS.forty has been a favorite wherever robust machine lights have been needed.
*Brackets Sold Separately, See Accessories
- 40 Degree Beam Angle; Focused Light
- Rugged anodized aluminum housing and 4mm thick safety glass
- Sealed IP67 Rated - highly resistant to coolants and lubricants
- 60,000 hours of maintenance-free LED service life
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | MACH LED PLUS.40 |
| Model: | MLAL 42S |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 21.3 |
| Width (in): | 1.58 |
| Bulb: | LED |
| Mounting Type: | Bracket |
| Wattage: | 16 |
| Lumens: | 1720 |
| Color Temperature: | 5000K |
| Color Rendering Index (CRI): | 85 |
| Lens Material: | Glass |
| Lens Style: | Satine |
| Protection Index: | IP67 |
| Operation: | Without Switch |
| Connection: | 16' Cord with free stranded wires |
| Certification: | ETL/cETL, CE Approved |
| Product Warranty: | 5 Years |
ACCESSORIES
Mounting Options:
|
MOUNTING OPTION: End Bracket Set, Adjustable, /- 90º, Pair |
|
|
MOUNTING OPTION: Clip Bracket, Adjustable, /- 20º, Each |
|
Power Options:
|
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz |
|
Connection Options:
|
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight (included with 24V models) |
|
|
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled |
|
|
CONNECTOR: M12 Connector, 4-pin, A-coded for 24V thru-wiring |
|
